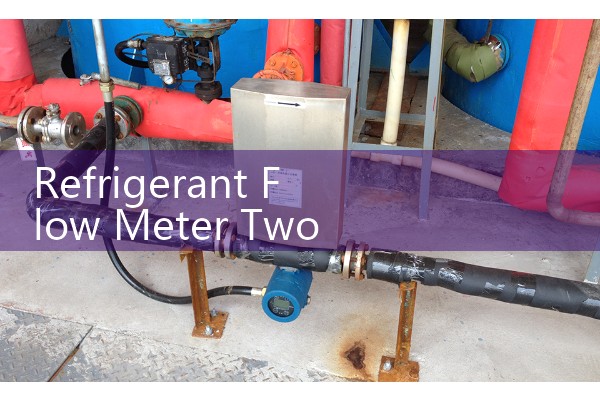

Refrigerant Flow Meter Two Phase Flow: Correcting Void Fractions in Flashing Gas
Quick Answer: Flashing gas in refrigerant lines creates a two phase mixture with a high void fraction. Volume flow meters lose accuracy because gas pockets displace liquid without contributing mass. A Coriolis mass flow meter measures mass directly and ignores void fraction errors. Silver Instruments provides mass flow meters for ammonia, R134a, R744 and other refrigerants, holding 0.15 % of rate accuracy even at 30 % void fraction.
Why Void Fraction Destroys Volume Meter Readings
A refrigerant line downstream of an expansion valve is a classic flashing zone. Liquid refrigerant partially vaporises. Small gas bubbles appear and create a void fraction. Volume meters such as turbines, oval gears or vortex devices count total volume. But gas takes up space and contains almost no mass. A turbine meter might read 50 L/min while the true mass flow is only 35 kg/min. The error changes with pressure drop, temperature and pipe orientation. There is no fixed correction factor.
Engineers often try to compensate with a void fraction model. In practice, the model drifts. A pressure drop of 0.2 bar changes the gas volume fraction by 4 percent. Pipe tee orientation matters too. We have seen this on customer sites many times. A cold storage facility in Thailand used a vortex meter on an R134a liquid line with 15 % flashing. The daily mass balance error reached 12 %. After installing a Silver Instruments Coriolis meter, the unaccounted loss dropped below 0.3 %.
How a Coriolis Flow Meter Ignores Void Fraction
Here is the thing. A Coriolis meter excites a tube at its natural frequency. Mass flow creates a phase shift between inlet and outlet sensors. That phase shift is directly proportional to mass flow rate. The presence of gas bubbles changes the damping but does not alter the mass measurement the way a volume meter fails. The meter measures true mass flow regardless of fluid composition. It also outputs density in real time. So you can see the mixture density drop when flashing occurs.
Silver Instruments offers Coriolis sensors from DN3 to DN150. For refrigerant test benches and chiller validation, DN15 to DN40 sensors handle flow ranges from 0 kg/h to 2,000 kg/h. The wetted parts are 316L stainless steel, compatible with common refrigerants and oils. Output is 4 to 20 mA HART, pulse, and Modbus RTU. The transmitter has an onboard temperature input for PT100, so you do not need a separate temperature transmitter.
Void Fraction Correction vs. Direct Mass Approach
Some manufacturers offer void fraction correction algorithms for vortex or turbine meters using inline pressure and temperature compensation. In our experience, these corrections fail in dynamic systems. Chiller loads change fast. A compressor unloads, the suction pressure drops, and flashing increases within seconds. The correction loop lags behind. You end up with a cascade of errors during transients. A Coriolis meter does not need any correction factor. It reads mass directly. That makes turbine and vortex correction obsolete for two phase refrigerant measurement.
Let me give you a specific example. A Brazilian OEM manufacturing heat pump water heaters ne
Key Specifications for Refrigerant Flow Meter Selection
When quoting a refrigerant flow meter, you need the following data. Minimum and maximum mass flow in kg/h. Normal line pressure in bar. Fluid temperature in °C. Pipe size DN. Refrigerant type and oil content. These parameters determine the correct sensor size and wetted material. Our standard meters handle pressures up to 100 bar and temperatures from -50 °C to +200 °C. Optional ATEX Zone 1 certification is available for ammonia (R717) systems in cold storage and food processing.
Do not assume a positive displacement meter can handle two phase flash gas. The gas pockets cause mechanical wear on gears and bearings. A gear meter at a dairy refrigeration plant in New Zealand lasted only six months on liquid ammonia with 20 % void fraction. After switching to a Coriolis meter, the site removed the upstream gas separator and saved USD 4,000 per year in maintenance.
FAQ: Refrigerant Flow Meter and Void Fraction Correction
Q: Can I use an ultrasonic flow meter for flashing refrigerant?
Ultrasonic transit time meters lose signal when gas bubbles exceed 1 % to 2 % volume fraction. The acoustic path is disrupted. Clamp-on meters are especially sensitive. Coriolis meters remain stable up to 30 % void fraction and higher with Entrained Gas Management (EGM) options.
Q: What is the accuracy of a Coriolis mass flow meter under two phase flow?
Our standard meter maintains 0.15 % to 0.2 % of rate accuracy for liquid mass flow even with up to 25 % gas void. The density reading will show the average mixture density, which is useful for diagnosing the gas fraction.
Q: Do I need a special transmitter for flashing refrigerant?
No special transmitter is required. The standard SIL-COR transmitter handles two phase bubbles. For severe entrained gas above 30 %, we activate EGM algorithms that drive the sensor at a different amplitude. This feature is standard on our DN15 to DN50 meters.
Q: Can the meter measure flow in both directions?
Yes. Coriolis meters measure bidirectional flow natively. This is useful for heat pump applications where the refrigerant flow reverses between heating and cooling modes.
Q: How do I get a price and delivery time?
Send us an email with your refrigerant type, pressure, temperature, pipe size, and flow range. We will propose a model, datasheet, and price within 24 hours. Contact [email protected] or call +86-25-68650347. You can also reach us on WhatsApp at +86-25-52155837 or WeChat at +86 15365082610.
For a fast quotation, send your pressure (bar), temperature (°C), pipe size (DN) and refrigerant type. Our team will recommend a Coriolis mass flow meter that avoids void fraction corrections entirely.
