Refrigerant Flow Meter for Leak Testing: Finding Structural Micro-Leaks Before Field Deployment
Quick Answer: A refrigerant flow meter helps manufacturers detect structural micro-leaks before a chiller or heat pump leaves the factory. By metering the exact mass flow of refrigerant or tracer gas into a pressurized test circuit, you catch leaks as small as 0.05 g per year. Silver Instruments recommends Coriolis mass flow meters for this job because they measure mass directly, ignore density changes, and give repeatable data even with two-phase refrigerant mixtures.
No factory wants a unit returned from a construction site in Dubai or a food plant in Brazil because of a slow refrigerant leak. The cost of sending a technician, recovering charge, and losing customer trust is higher than any lab test. That is why more HVAC and chiller OEMs in China, Thailand, and Mexico now install flow-based leak test rigs instead of relying on pressure decay alone.
Why Micro-Leaks Matter in Refrigerant Systems
Structural micro-leaks are not like a pinhole in a tube. They happen at brazed joints, threaded fittings, or cast compressor housings where tiny porosities allow refrigerant to escape molecule by molecule. A system may hold pressure overnight and still lose 3 % of charge over a year. In a 500 kg R-134a chiller, that means 15 kg of refrigerant gone. Under F-gas regulations in Australia and the EU, that triggers mandatory leak checks and fines.
Pressure decay testing often misses these leaks. A 5 bar nitrogen test may show a 0.1 mbar drop in 24 hours, but the equivalent refrigerant loss could be 50 g per year. That is too coarse. A mass flow meter detects the actual gas escaping into the test circuit in real time.
The Role of Flow Meters in Leak Testing
Here is the thing: a leak test flow meter does not measure the leak itself. You place it on the supply line feeding refrigerant or helium into the sealed unit. The meter records the mass flow needed to maintain a set pressure. If the part has zero leaks, flow drops to zero once pressure stabilizes. If flow continues at 0.2 kg/h or 0.02 kg/h, that steady-state value is your leak rate.
Coriolis meters work well here because they measure mass flow directly, not volume. Refrigerant gas density changes with temperature swings of only 2 °C in the factory. A thermal mass flow meter would need constant recalibration. A Coriolis meter, like the Silver Instruments DMF-1-6 series, ignores P and T variations. It also handles two-phase flow, which happens when liquid refrigerant droplets carry over from the charging line. Most engineers skip this part, but we have seen many installations fail because a thermal meter gave ghost readings as the refrigerant phase changed.
Key Specifications for Refrigerant Leak Detection
When we quote a meter for leak testing, we ask for the required leak rate threshold. A typical request is to detect 5 g per year of R-410A. Convert that to a mass flow range for the test skid. If the test cycle is 30 minutes, a 5 g/year leak corresponds to roughly 0.00057 kg/h. That is within the low-flow range of our DMF-1-6-A Coriolis meter, which measures down to 0.001 kg/h with ±0.2 % accuracy.
Pipe size is small. Often DN6 or DN10. Process connections are Swagelok 1/4 in or 3/8 in compression fittings. Wetted parts should be 316L stainless steel, compatible with R-32, R-290, R-454B

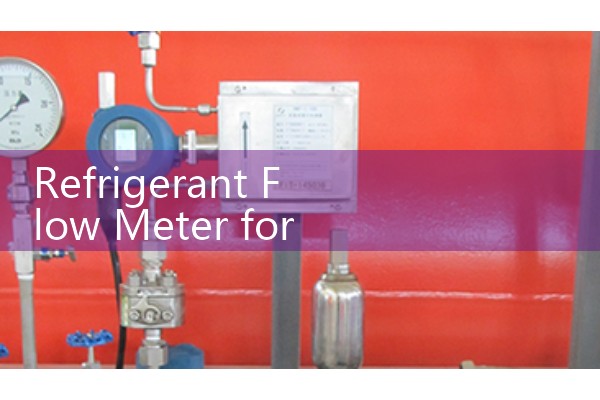

_600x400.jpg)
A Real-World Example from a HVAC Manufacturer
Last year a customer in Vietnam asked us to replace a thermal mass meter on a leak test bench for compact water chillers. They manufacture 200 kW units with shell-and-tube evaporators. Brazed joint leaks accounted for 4 % of warranty returns. The old thermal meter drifted 0.5 % per °C ambient shift, so operators ignored it. We installed a DMF-1-6-A with DN6 process connections and a remote transmitter. The PLC now reads mass flow via 4-20 mA. The leak threshold was set to 0.005 kg/h. Within two months, in-factory rejection dropped from 4 % to 0.5 %. The meter paid for itself in eight weeks.
Choosing the Right Flow Meter for Your Test Rig
Three main technologies appear in refrigerant leak testing: Coriolis, thermal mass, and laminar flow elements with differential pressure. Thermal is cheap but sensitive to gas composition. If you test with helium as a tracer gas, you must recalibrate when switching to actual refrigerant. Laminar flow elements have 100:1 turndown but need clean, dry gas and are fragile. Coriolis is the only option that handles liquid slugs, gives direct mass, and works with any gas without recalibration. The trade-off is price. But for a production test rig that runs 16 hours a day, the uptime gain offsets the cost.
Send us your pressure (bar), temperature (°C), test gas, pipe size (DN), and the minimum leak rate you want to detect. We will propose a meter with a sizing sheet within one working day.
FAQ
Q: Can a flow meter really detect leaks smaller than a bubble test?
Yes. A Coriolis meter catches steady-state mass flows below 0.001 kg/h. A bubble test detects leaks around 0.01 kg/h at best. The difference is an order of magnitude.
Q: What if the refrigerant contains oil mist from the compressor during testing?
Coriolis meters tolerate small amounts of oil mist without damage. We recommend a 100-micron filter upstream if oil carryover exceeds 1 % by mass. That keeps the meter tubes clean and maintains accuracy.
Q: Do you supply meters for flammable refrigerants like R-290?
Yes. Our DMF-1-6 series is available with stainless steel construction and Ex ic or Ex ia approval for Zone 2 applications. We provide the ATEX certificate with your order.
Q: How do we integrate the meter into an existing PLC?
The meter outputs 4-20 mA HART for flow rate and a high-speed pulse output for totalization. Most PLCs read the analog signal and calculate leak rate based on a 10-minute rolling average. We can share a sample ladder logic snippet if you need it.
Q: Is on-site commissioning included?
We ship the meter pre-calibrated for your test gas. Remote support via video call is included. For on-site commissioning in Southeast Asia, the Middle East, or Latin America, ask your sales contact for a day-rate quotation.
