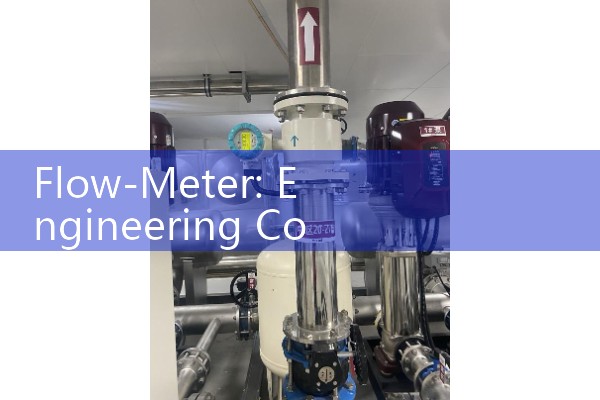

Inline Fluid Monitoring Systems What Works on Real Plants
Quick Answer: Inline fluid monitoring means measuring flow, pressure, and sometimes temperature or density without bypass loops or sample lines. For most industrial plants, the fastest way to get reliable data is a dedicated inline flow meter paired with a 4-20 mA HART transmitter. Silver Automation Instruments supplies Coriolis, electromagnetic, ultrasonic, vortex, oval gear, and thermal mass flow meters specifically built for in-line installation in DN15 to DN300 pipes.
Why Inline Monitoring Beats Sampling Every Time
Engineers in water treatment plants in Southeast Asia often tell us the same story. They spent months calibrating a sampling system only to find out the sample line was clogging twice a week. Inline instruments skip that problem completely. The sensor sits in the process stream, seeing real-time changes in flow, density, or conductivity the moment they happen. In a desalination plant in Oman, replacing a side-stream density meter with an inline Coriolis meter cut maintenance calls from six per month to zero. That is the difference between sampling and direct inline measurement.
Another advantage you do not always read about is response time. A magnetic flow meter on a 200 mm brine line reacts to flow changes within 0.1 seconds. A sample loop with a turbine meter might take 3-5 seconds just to flush the old fluid. When you are dosing antiscalant based on flow, those 5 seconds cause overdosing and extra chemical cost. Inline electromagnetic flow meters from Silver Instruments deliver the signal directly to the PLC with less than 100 ms latency.
Matching the Flow Meter to the Fluid
Inline monitoring only works if the sensor technology matches the actual process fluid. We visit sites in Australia where a generic vortex meter was put on a low-conductivity condensate line. The result was readings that drifted every time the pump started. Condensate has conductivity below 5 µS/cm. An electromagnetic flow meter simply cannot function there. The replacement was a vortex flow meter with an integrated PT100 temperature sensor, which gave stable mass flow in kg/h from day one.
Here is a quick guide based on what we ship to different industries:
For raw water, wastewater, and any fluid with conductivity above 20 µS/cm, an inline electromagnetic flow meter is the first choice. Our typical customer in a Philippine water district orders sizes from DN50 to DN250, with rubber liner and 316L electrodes. The output goes to a SCADA system via 4-20 mA with HART, and the meter body has IP68 rating because floods happen.
For diesel, palm oil, and viscous chemicals, positive displacement oval gear flow meters give accuracy that Coriolis cannot beat on a budget. Last year a paint manufacturer in Vietnam needed to dose alkyd resin at 300 cP. The oval gear meter with a mechanical register worked fine without any power supply, which was important because their mixing area is classified ATEX Zone 1. We supplied meters with PTFE gears and an explosion-proof housing. Total cost was one-third of a comparable Coriolis solution.
For high-value fluids like palm olein or solvents, and especially when density changes with temperature, a Coriolis mass flow meter is the most reliable inline tool. It measures mass flow directly in kg/h, plus density and temperature, all from one device. A food ingredients exporter in Thailand uses our DN25 Coriolis meter to fill tank trucks with coconut oil. They track density at 0.5 kg/m³ resolution to detect any air entrainment during loading. The meter pays for itself by preventing billing disputes.
Compressed Air and Biogas Need Thermal Mass
Many plants still use orifice plates for compressed air monitoring, but the permanent pressure loss is painful. Inline thermal mass flow meters insert directly into the pipe and measure mass flow without any pressure drop penalty. A textile factory in Bangladesh switched from an orifice DP setup to a thermal mass flow meter on their main 3-inch compressed air header. They immediately saved 22% on compressor energy because the DP transmitter drift was masking real consumption. Their flow range was 10 to 400 Nm³/h, and our meter handles turndown up to 100:1, so that was easy.
For biogas from palm oil mill effluent in Malaysia, thermal mass flow meters with Hastelloy sensor tips withstand the H₂S and moisture. The inline probe installs via a ½-inch ball valve without shutting down the digeste
Pressure and Recording Add More Context
Inline monitoring is not just about flow. Pressure transmitters and paperless recorders turn a flow reading into a full batch report. Our pressure transmitters use silicon piezoresistive sensors with accuracy of 0.1% FS. They go on the same pipe as the flow meter, connected via a diaphragm seal if the fluid is sticky. The 4-20 mA signal goes into a paperless recorder that stores data on a USB stick. A dairy in Argentina uses exactly this setup: an electromagnetic flow meter for milk intake, a pressure transmitter at the pump discharge, and a 12-channel recorder that timestamps everything. When a batch fails audit, they can pull the curve and find out if the pump cavitated or the valve was closed.
Installation Tips Most Manuals Skip
So much inline meter trouble comes from installation shortcuts. A magnetic flow meter needs a straight pipe run of 5D upstream and 3D downstream. We have seen a customer in Kenya install a DN80 magmeter right after an elbow, and the reading fluctuated 12% during peak flow. Adding a straightening vane fixed it. With Coriolis meters, the biggest hidden error source is pipe stress. A twisted flange or misalignment puts stress on the sensor tubes, causing a zero shift of 0.02% but constant. A flexible coupling right at the meter inlet solves it. Our application engineers can check your piping layout before you order; send us a picture of your skid and we will suggest the right straight run and support.
Temperature compensation also matters. Oval gear meters for diesel fuel need a correction factor of roughly 0.1% per degree Celsius. If you measure volume at 35°C but invoice at 15°C, the difference on a 20,000-liter truckload reaches 40 liters. That is real money in Africa and the Middle East. Our mechanical registers include a temperature compensator option, so you read net volume without any external math.
What to Send Us for a Quote
We do not send generic price lists because the right inline meter depends on five data points. Tell us your fluid name, operating pressure in bar, temperature in °C, pipe size in DN or inches, and flow range (minimum, normal, maximum). Also note if the area is ATEX Zone 1 or 2. Our team will respond within 24 hours with a specific model recommendation and a firm price. Reach us at [email protected], call +86-25-68650347, or message via WhatsApp at +86-25-52155837. For applications in Spanish, Portuguese, or Arabic, we have engineers who speak your language.
FAQ
Can I use one flow meter for multiple fluids with different conductivity?
Yes, but only with Coriolis or thermal mass, because they do not depend on conductivity. Electromagnetic meters need a minimum 5 µS/cm; if you switch between DI water and brine, choose Coriolis.
What inline flow meter works for seawater desalination plants?
Electromagnetic flow meters with PTFE liner and titanium electrodes are standard. We supply sizes from DN15 to DN300 for brine, permeate, and chemical dosing lines. Specify 4-20 mA HART output and IP67 enclosure. Many of our Australian desalination customers use exactly this configuration.
How often do inline meters need calibration?
Most plants calibrate every 12 to 24 months. Wet calibration on a rig is best for custody transfer. For process control, a field check with a reference meter is acceptable. Silver Instruments offers accredited calibration in our Nanjing lab and can arrange local service in selected countries.
Do you have a battery-powered option for remote sites?
Yes, our electromagnetic and vortex flow meters can be supplied with an internal lithium battery pack lasting 3 to 5 years. They record flow total and can output a pulse. Perfect for irrigation canals in remote areas of Zambia where we installed ten units in 2023.
What is your typical delivery time for a DN100 electromagnetic flowmeter?
Standard models with rubber liner and 316L electrodes ship in 3 to 5 working days. For special liners like PTFE or high-temperature options, allow 2 to 3 weeks. Express air freight to Southeast Asia takes about 5 days after dispatch.
