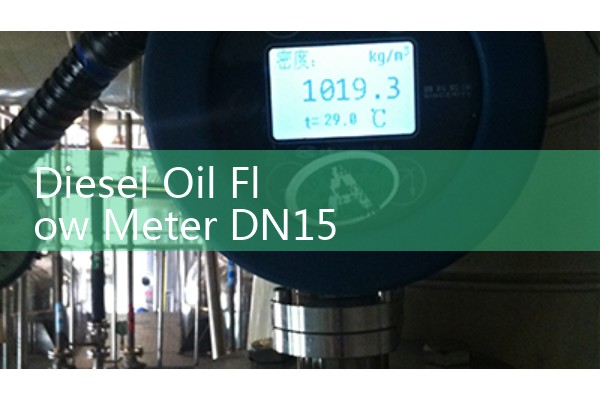

Diesel Oil Flow Meter DN15 Piping Layout Specifications
Quick Answer
For a DN15 diesel flow meter, use a positive displacement oval gear meter built for fuel oil. Install a 100 mesh Y strainer directly upstream. Provide a straight run of 10D inlet and 5D outlet even though the meter is volumetric. Add an air eliminator on the upstream high point. Without these three steps, accuracy drifts and gears wear fast on a real diesel line.
Why an Oval Gear Meter Fits Small Diesel Lines
Diesel viscosity changes with temperature and grade. A DN15 electromagnetic meter cannot read low conductivity hydrocarbons. A turbine meter loses linearity below 2 cSt. Oval gear meters measure actual volume displaced. Viscosity shift does not change the trapped volume between the gears. Silver Instruments supplies the SIOG series in DN15. The body is stainless steel 304. Gears are PPS or PTFE. The rotor runs on hardened stainless steel shafts. Nominal flow covers 1.2 to 30 L/min for clear diesel at 20 °C. Accuracy is ±0.5% of reading. Repeatability stays within 0.03%. Output choices are pulse, 4-20 mA, and 4-20 mA HART.
Straight Pipe Rules for DN15 Diesel Installations
Oval gear meters are less sensitive to flow profile than turbines. Still, swirl and pulsation eat up gear life. We ask for 10D straight pipe upstream and 5D downstream. For DN15, that means 150 mm before the meter and 75 mm after it. No elbows, valves, or pumps inside that length. Keep the pipe internal diameter at exactly 15 mm. Do not use a reducer that creates a dead pocket. We have seen a diesel generator OEM in Thailand skip this rule. The meter over-registered by 1.2% until they cut out a close-coupled elbow.
Filtration and Air Removal Are Not Optional
Diesel from an oil drum or day tank carries rust, sand, and wax particles. A single grain of sand locks an oval gear pair. Fit a full-flow Y strainer with 100 mesh (0.15 mm) screen directly before the inlet. Install a differential pressure gauge across the strainer so operators know when to clean it. Air bubbles are another killer. A tiny bubble adds slip and spikes the pulse output. Mount an air eliminator at the high spot of the upstream piping. For a horizontal pipe, put a standpipe with a float vent. A biodiesel blending plant in Malaysia solved a 3% daily drift by adding a simple air pot. Silver Instruments can supply the strainer and air eliminator as a compact DN15 pre-assembled block.
Mounting, Support, and Bypass Piping
Mount the DN15 meter with the rotor shafts horizontal. This stops the gears from rubbing against the end plate when the line is empty. Use brackets to support the meter body. A 1-inch schedule 40 steel pipe can put stress on a lightweight 0.6 kg meter. Add shutoff valves on both sides of the meter. A tee bypass
Temperature, Pressure, and Viscosity Limits
Standard SIOG DN15 meters operate up to 80 °C and 40 bar. Diesel usually stays below 60 °C and 10 bar, so this leaves plenty of margin. Cold diesel thickens. At 0 °C, diesel can reach 7 cP. The meter handles it but the torque increases. If you meter diesel at sub-zero temperatures, order the meter with a PT100 sensor inside the measurement chamber. The transmitter then outputs temperature-corrected volume at 15 °C. Silver Instruments configures this in our Viet Nam calibration lab before shipment. Mention the coldest diesel temperature you expect when you ask for a quote.
Signal Wiring and Noise Rejection
Use a 3-core shielded cable for the pulse or 4-20 mA signal. Ground the shield at the panel side only. Keep signal cables at least 300 mm away from VFD motor cables. For ATEX Zone 2 applications, the SIOG comes with an EEx ia IIC T4 certification option. Loop power is 24 VDC. The pulse output is an open collector NPN, which works with most PLC counters. A customer in Saudi Arabia connected the pulse to a Siemens LOGO. They read total diesel consumption per generator set with a resolution of 10 ml per pulse.
Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range. Our application team picks the right diesel meter and piping kit for your site.
FAQ: DN15 Diesel Flow Meter Piping
Can I install the DN15 oval gear meter right after a gear pump?
No. A gear pump creates pressure pulsations. Place at least 10D of straight pipe and a pulsation dampener between the pump and the meter.
Do I need a straight run before a positive displacement meter?
You need less than a turbine meter. Still, 10D upstream and 5D downstream cut swirl and protect gear life. Most engineers skip this part and regret it later.
What happens if air passes through the meter?
The meter counts air as diesel volume. That gives a reading higher than actual fuel used. Air also dries the gears and causes galling. An air eliminator solves both.
Which filter mesh size works for diesel oil?
A 100 mesh (0.15 mm) Y strainer works for retail diesel. For waste oil or biodiesel, use 60 mesh to avoid frequent clogging. Silver Instruments pre-sizes the strainer to match your flow.
Is the DN15 diesel meter available with ATEX certification?
Yes. The SIOG series has an intrinsically safe version for ATEX Zone 1 and Zone 2. The certificate covers diesel and other light fuel oils.
